Wisycom MRK16 16 Channels UItra-Wideband Wireless System
Wisycom MRK16 16 Channels UItra-Wideband Wireless System
MRK16_STD — MODULAR WIRELESS-MICROPHONE RECEIVER SYSTEM
Up 16 channels (with 4 times MCR54) IN 19” 1RU rack
UHF range 470-1260 MHz with integrated band-pass filters
Integrated antenna distribution
NOTE: Requires MCR54 receiver modules sold separatly
MRK16-EX3-SC — MRK16_STD with EX3 Fiber Expansion Module
for remote antenna zone with RF filtering. EX3 module fitted with SC connectors.

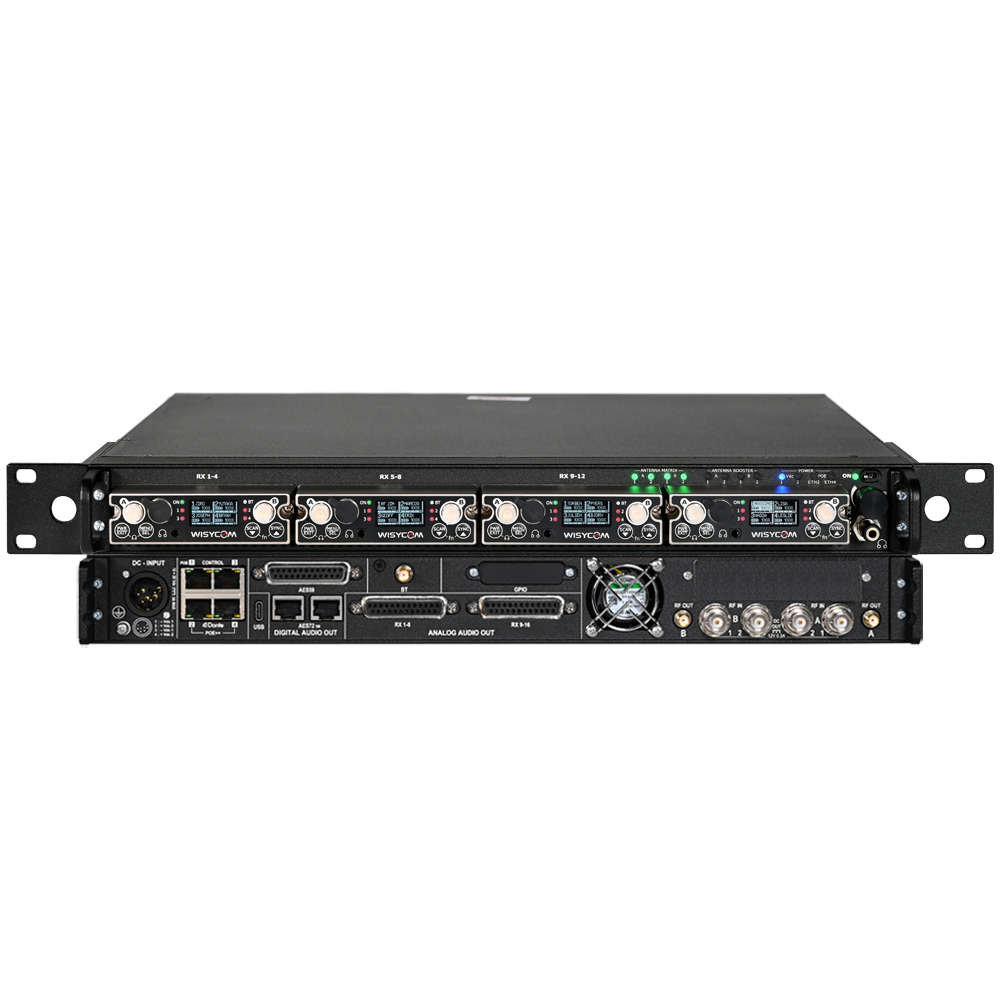

MRK16 is a modular wireless-microphone receiver system that fit up 16 channels in a compact 19” 1RU aluminum chassis. It accepts up to 4 MCR54 receivers, providing antenna distribution, RF filtering and advanced audio routing (analogue, AES3 and Dante).
FEATURES
Up to 16 true diversity channels in a compact 19” 1U rack (4x MCR54)
Ultra wideband receiver system from 470 to 1260 MHz equipped with 10 automatically selected band-pass filters
RF Over Fiber for reception without distance limits! The optional fiber module EXP3 allows to replacement of coaxial cable and antennas located miles away
Multiple audio outputs:
-Digital (AES72&AES59)
-Dante (primary&secondary)
-Analog (2xDB25 Tascam wiring)Dual Area Matrix to select and combine 2 diversity zones. Antenna booster and remote control of Wisycom LFA/ADFA/BFA.
Bluetooth 5 Long Range: Class 1 (100mW) remote control to connect Wisycom devices within a range of hundreds of meters.
Daisy chain up to 4 racks for 64 channels in only 4U
5 ports manageable Gigabit Ethernet switch (ETH5 is connected to an internal SFP module for fiber data)
Redundant (dual) power supply on XLR
Dual Power Over Ethernet input and PoE output (PE1 optional)
USB-C connectivity with powering (1.5A)
