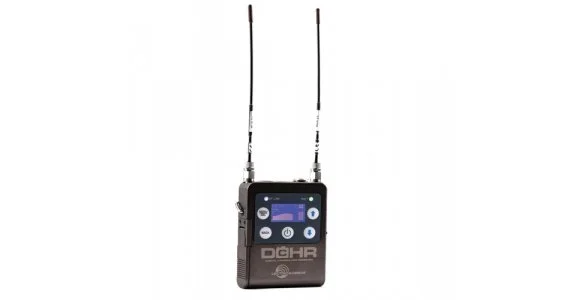

Lectrosonics DCHR Digital Stereo Camera Hop Receiver
Lectrosonics DCHR Digital Stereo Camera Hop Receiver
Receiver, Digital Camera Hop, Analog & AE3 Outputs
Frequency Range 470-608 MHz
Tunes across 144 MHz from 470-608 MHz (covers A1 and B1 ranges)
Compatible with DBSM, DBu, DHu, DPR, DCHT and M2T Transmitters
Selectable AES3 or analog mic/line level outputs
256-bit encryption – AES 256-CTR
USB port for firmware updates
Two AA battery power
Solid machined aluminum housing
Optional powering from external DC with LTBATELIM
Extremely fast RF scanning and setup via IR
The DCHR portable digital stereo receiver is designed for use in film and TV production as both a wireless stereo audio link from a bag or cart system to cameras using a DCHT or M2T transmitter, or as a stand-alone miniature receiver for use with D Squared series mono transmitters. The DCHR provides two channels of mic or line level analog signals or an AES3 digital signal via a locking TA5M connector. The digital architecture of the DCHR is a 4th-generation design with specially developed, high-efficiency circuitry for extended operating time on two AA batteries.
The DCHR can tune across the available UHF TV band from 470-608 MHz in 100 kHz or 25 kHz steps, offering more than 6000 frequencies. The digital architecture allows for AES256-CTR encryption for applications where content security is a concern, and provides four different encryption key policies for a variety of applications. The DCHR can be camera mounted using the optional LRSHOE accessory.
