Clear-Com HelixNet HXII-DPL Powerline Device
Clear-Com HelixNet HXII-DPL Powerline Device
HXII-DPL — HelixNet Powerline Device: (1) Powerline converted from Network with power injection for 7 beltpacks
Facilitates passive Powerline 3-pin XLR cabling to HelixNet user stations.
DETAILS
HelixNet Powerline Device
• Networked Powerline Bridge, for: HelixNet on Arcadia or HMS-4X1
• Powerline to HelixNet User Stations, to: Beltpack, Speaker & Remote Stations
• Device Status Indicators
• Central Diagnostics in Arcadia CCM
• Compact for Optimal Installation
• Multiple Installation Options
Portable
Surface Mount - Optional
Rack Mount - Optional
Powerline
• Digital over 3-pin XLR cable
• Passive Cabling Infrastructure; Supporting Y Splits & Daisy Chain
• Long Cable Distances
• Robust connectivity
Connectivity
• Ethernet
• Powerline
• DC Power Input
Capacity
• (24) Powerline Devices per system
• (1) Powerline per device
• (7) HelixNet Beltpacks or power equivalent Remote & Speaker Stations
Includes:
(1) Inline PSU 90W 48V DC (PSU-EXT-005)
(1) Rubber Feet kit (MECH-00379)
(1) Velcro for PSU Mounting (235G032)
Optional Accessories:
SM-100 Surface Mount
RK-100 Rack Mount
SP-2 Intercom Splitter Cable - XLR-M to XLR-M & F
SP-3 Intercom Splitter - (1) XLR-F to (3) XLR-M
PRODUCT DESCRIPTION
Installation Options
The HelixNet powerline device is designed to allow for various installation options in different environments. Compact portable form-factor allows for the device to be placed or mounted wherever needed. Supplied rubber feet can be installed on the bottom of the device to allow for “throwdown” style usage. Optional SM-100 surface mount allows the powerline device to be permanently installed with screws, straps or using 3rd party DIN rail clips. Optional RK-100 19” rack mount allows up to (4) HXII-DPL powerline devices to be mounted in 1 rack space. Heavy duty industrial Velcro is provided for optional installation of the external inline power supply.
Powerline
Powerline is a connectivity method allowing Ethernet to be modulated on a 3-pin shielded XLR cable providing multiple devices on the line with power and network communication. Powerline may be split, daisy chained and otherwise distributed passively over traditional XLR infrastructure to provide various installation options.
Powerline Device
The HelixNet powerline device bridges Ethernet to Powerline and provides an injection of power for the devices on the Powerline. Using the powerline device HelixNet user stations, operating on compatible firmware versions, can connect to their paired HelixNet system host, such as the Arcadia Central Station or HelixNet HMS-4X1 main station, via the system host’s network interface.
HelixNet powerline device supports up to (7) HelixNet beltpacks or its power equivalent HelixNet remote and speaker stations. HelixNet beltpacks can be daisy chained using the optional SP-2 intercom splitter cable, or equivalent passive splitters.
HelixNet powerline device can be located anywhere on the network it is optimal to connect the powerline within the cabling infrastructure. Multiple powerline devices can be on the network, providing the appropriate user station capacity and quality of service required for the installation.
HelixNet powerline device includes simple indicators for device local troubleshooting of up-and-downstream cabling and overload conditions, while centrally the Arcadia Core Configuration ManagerTM(CCM) accessible by any web browser), displays connection status and diagnostics information for all powerline connected devices.
TECHNICAL SPECIFICATIONS
Power
Voltage: 48V DC
Current (Max): 1.8A
Power (Max): 87W
BTU (Max): 297 BTU/hr
Dependent on powerline connected devices
Input Power Connector: KPJX-PM-3-S
This unit is powered via:
AC Adapter - Inline:
Type: PSU-EXT-005 (supplied)
Input Voltage Range: 100 - 240V AC
Input Frequency Range: 50 - 60Hz
Input Power Connector: IEC-C14
Output Voltage: 48V DC
Output Current (Max): 1.88A
Output Power (Max): 90W
Output Power Connector: KPPX-3P
Cable Length: 59in (1.5m)
Dimensions:
1.3 x 2.1 x 5.23in (HxWxD)
(33 x 53 x 133mm)
Weight: 0.55lbs (0.25kg)
Mounting
VESA Sockets Center-to-Center: 2.95in (75mm)
VESA Thread Type: M4x10
Note: Velcro is included for optional mounting of PSU. Apply Velcro to plastic (non-label) surface and cure for 24 hours before use
Environmental
Operating: 32° to 104°F (0° to 40°C)
Storage: -22° to 158°F (-30° to 70°C)
Humidity: 20-90% Non-Condensing
Acoustical: 42dB SPL A-Weighted @ 1ft (32dB SPL A-Weighted @ 1 mtr)
Dimensions
Device: 1.555 x 4.213 x 7.78in (HxWxD)
(39.5 x 107 x 197.58mm) – Includes handles
Shipping: 5.5 x 8.5 x 12.25in (HxWxD)
(140 x 216 x 311mm)
Weight
Device: 1.3lbs (0.59kg) – Excludes power supply & regional power cable
Maximum Level: 5lbs (2.25kg) – Excludes regional power cable
1HMS-4X is a legacy product. HMS-4X operation requires HLI-ET2 Ethernet Interface Module.
2Use with HMS-4X does not feature central pairing and diagnostics
3Remote and Speaker Station are form, fit and functionally equivalent material and construction
Compatibility
Arcadia Central Station v2.11+
HelixNet HMS-4X1 v4.5+2
HelixNet User Stations:
-Beltpack (HXII-BP, HBP-2X)
-Speaker Station (HKII-KB, HKB-2X)3
-Remote Station (HXII-RM, HRM-4X)3
Note: HelixNet User Stations must be upgraded to a compatible firmware version prior to regular use with the HXII-DPL Powerline Device. Upgrade options include: User station Network connection or HMS-4X¹ Powerline connection.
Upgrade options include: User station Network connection or HMS-4X¹ Powerline connection.
Capacity
(24) HXII-DPL Powerline Devices on a HelixNet System Host such as Arcadia or HMS-4X1
Connectors
(1) Digital Intercom / XLR Powerline: 3-pin XLR-M
(1) LAN Ethernet: EtherCON RJ45
(1) DC Power: 3-pin KPJX-PM-3-S
Controls and Indicators

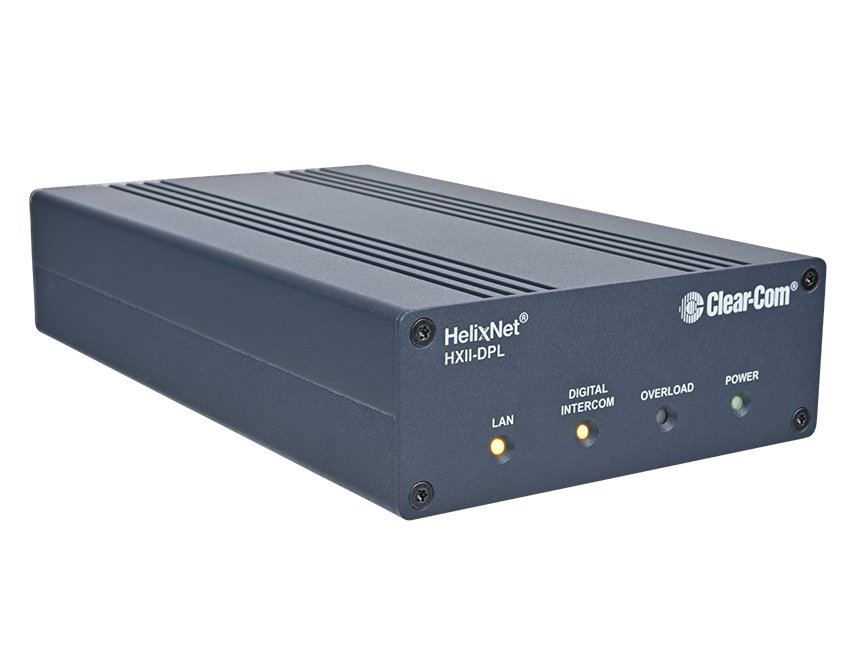

Front Panel:
(1) LAN / Network Activity Link & Activity LED - Amber
(1) Digital Intercom / XLR Powerline Link & Activity LED - Amber
(1) Overload LED - Red
(1) Power - Green
Rear Panel:
(1) LAN / Network Activity Link & Activity LED - Amber
(1) Digital Intercom / XLR Powerline Link & Activity LED - Amber
(1) Digital Intercom / XLR Powerline Overload LED - Red
Network
Data rate: 100Mb
Powerline
One independent network XLR Powerline
Frequency Modulated Ethernet - OFDM
Output Voltage: ±28.5V DC
Output Current (Max): 0.9A per Powerline
Protected for cable shorts or overload
Frequency: 1.8 - 67.5MHz
Requires shielding integrity between different Powerlines
Support up to 7 beltpacks each
Support up to 2-7 remote & speaker stations each
Locally powered remote & speaker stations count as beltpack
Use HelixNet Cable Calculator to validate load and cable distance.
