The FSII-TCVR-24 is an active transceiver antenna for the FSII-BP24 beltpacks. The antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000 ft). The FSII-TCVR-24 has a mount for wall or microphone stand. A blue status light is visible from either mounting orientations. When mixed with FSII-TCVR-19 antennas, a single radio space can support up to 65-90 FreeSpeak II 1.9 GHz or 2.4 GHz beltpacks.

DETAILS

• Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware

• Uses existing FSII base, E-QUE-HX cards, and FSII splitter hardware

• Supports 4 FSII-BP24 beltpacks per FSII-TCVR-24 transceiver

• Supports systems with up to 65-90 beltpacks when mixed with FSII-19-TCVRs

• Blue LED status indicator on top and bottom

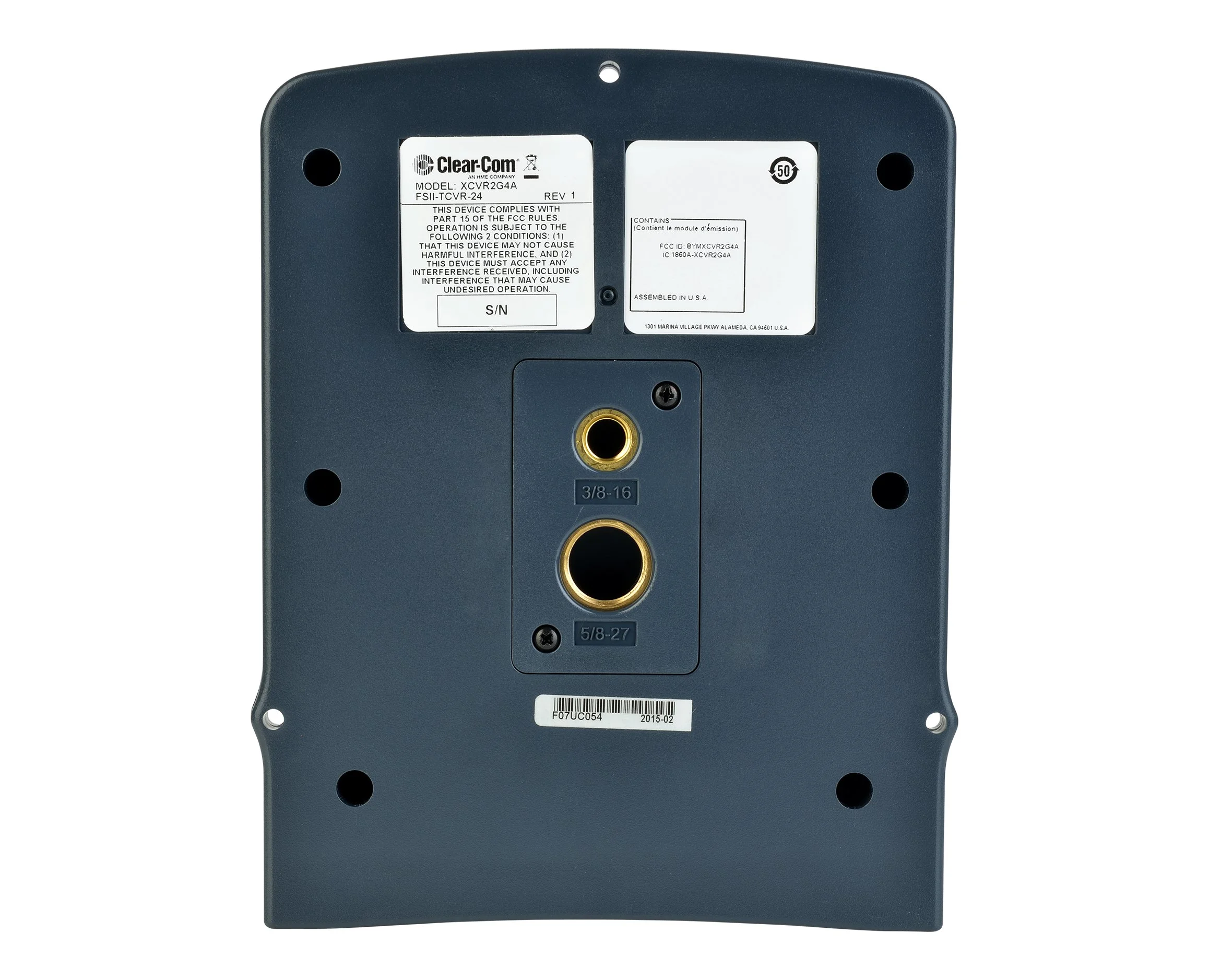

• Mic stand or wall mount orientation (metric and imperial threads)

• IP53 rating for wet and dusty conditions

TECHNICAL SPECIFICATIONS

Specifications

Frequency Spectrum: 2.400-2.483GHz for EU and US Cellular auto roaming technology

Modulation: GFSK, TDMA frame 10ms full slot

Output power: (EU): 18dBm, (RoW): 22dBm

Environmental

IP53 water and dust resistance

Operating: 32º-125ºF (0º-50ºC)

Storage: 32º-150ºF (0º-70ºC)

Humidity: Between 20% and 90%, Non-Condensing
