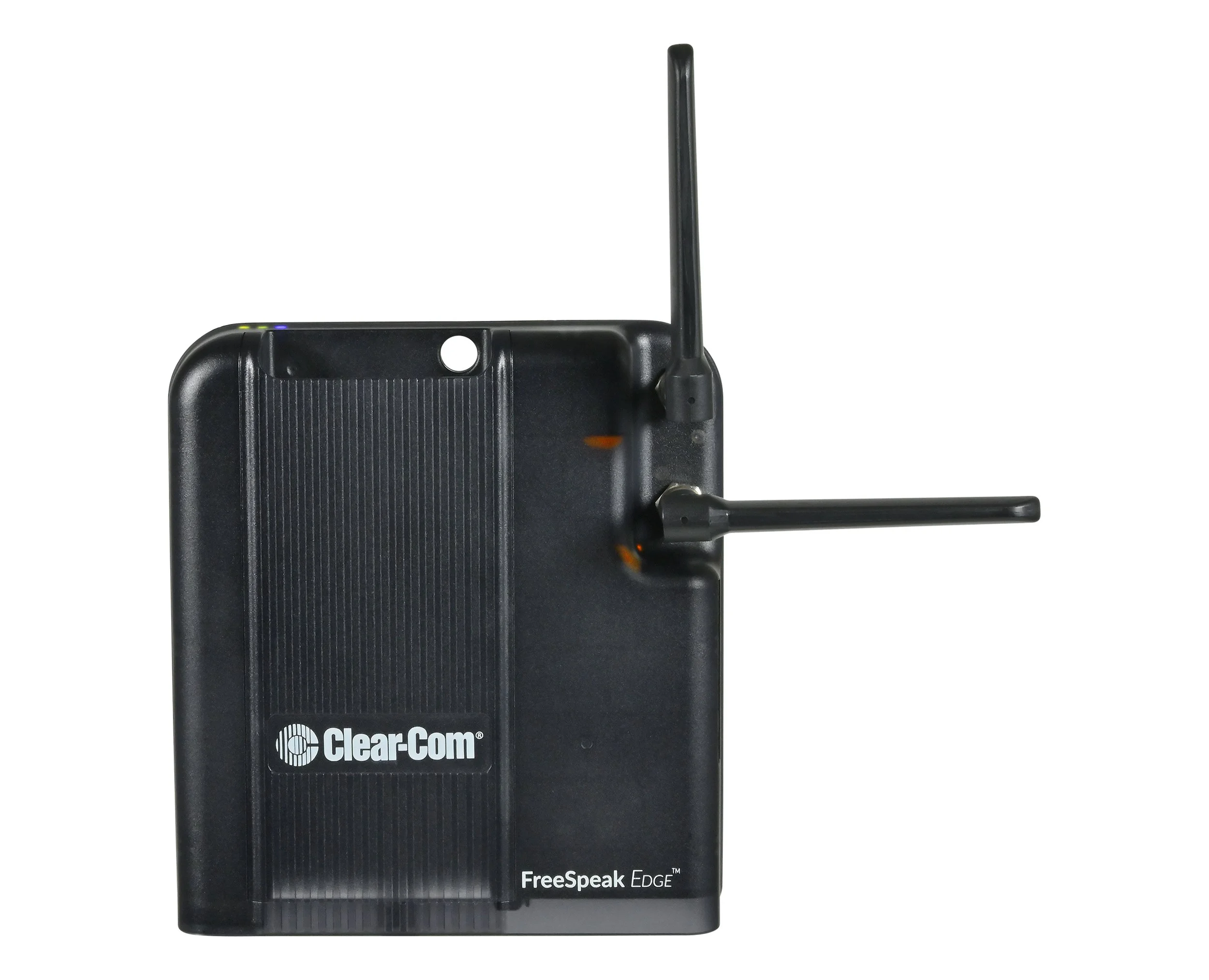

FSE-TCVR-50-IP-US — FreeSpeak Edge Transceiver: 5GHz, IP, US for (10) FSE-BP50 beltpacks
The FSE-TCVR-50-IP is an active IP transceiver antenna for the FreeSpeak Edge wireless system. The transceiver delivers duplex communications from the Eclipse® HX matrix system via the E -IPA-HX interface card to the FreeSpeak Edge beltpacks. Each transceiver can support up to ten FSE-BP50 beltpacks. When supported with an E-IPA-HX card with 64 licensed ports, up to 64 FreeSpeak Edge beltpacks and 64 transceivers can be deployed with one Eclipse HX matrix system. The FreeSpeak Edge Digital Wireless RF Configuration Guide provides specifications, best practices and guidance for using the 5 GHz band and RF channels.
DETAILS
Connectivity
Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards
Supports 10 FreeSpeak Edge beltpacks per transceiver
Supports up to 64 transceivers and beltpacks per 64 port E-IPA-HX card and 200 beltpacks per Eclipse HX system
Robust radio link works in high multipath or reflective environments
Wi-Fi coexistence
Standalone mode for site survey and demo
AES256 shared key encryption
Dual network connections
etherCON RJ45 network connection
High speed SFP fiber cage
Power-over-Ethernet (PoE) up to 330ft (100m)
Daisy-chaining up to three locally powered transceivers

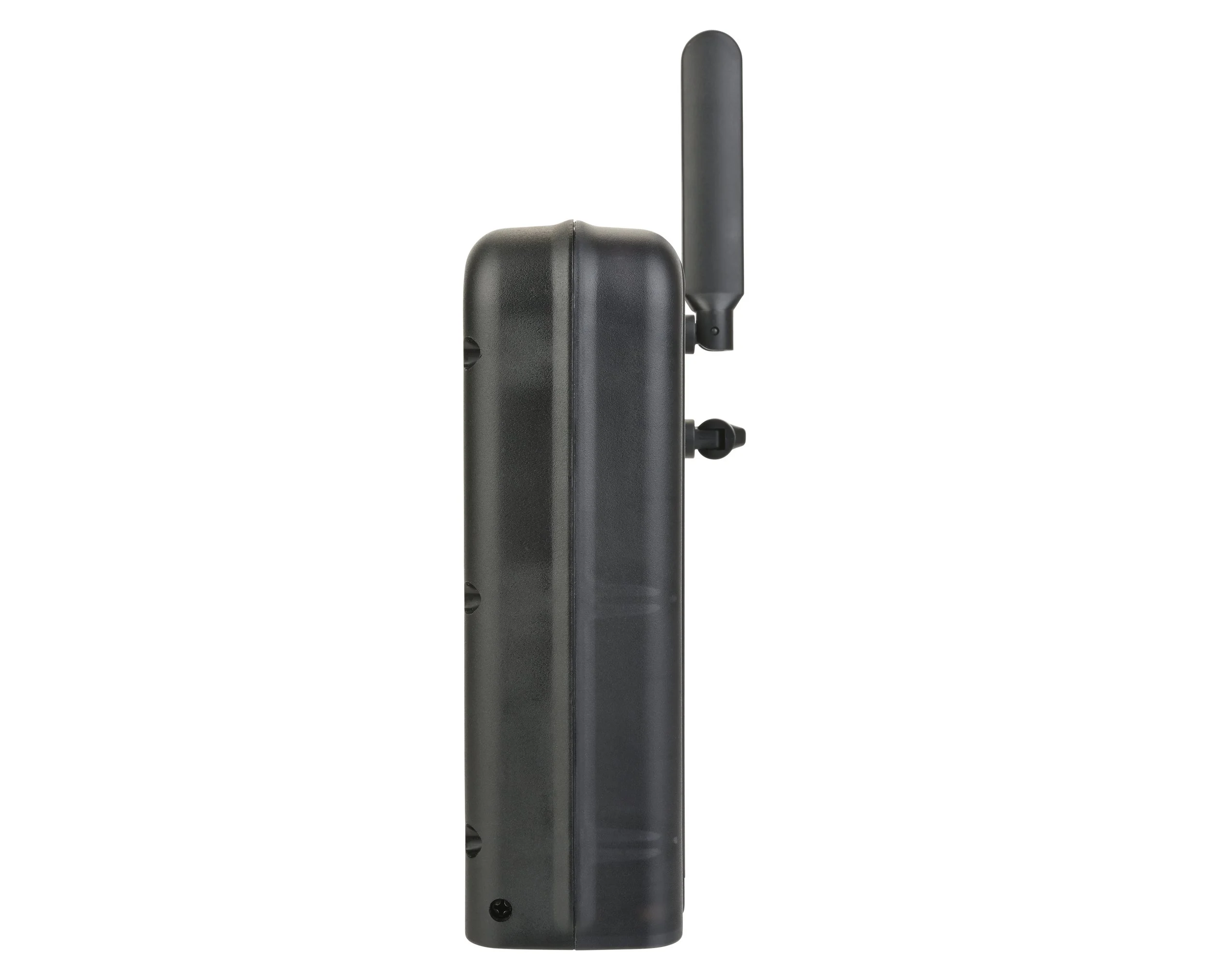

Transceiver

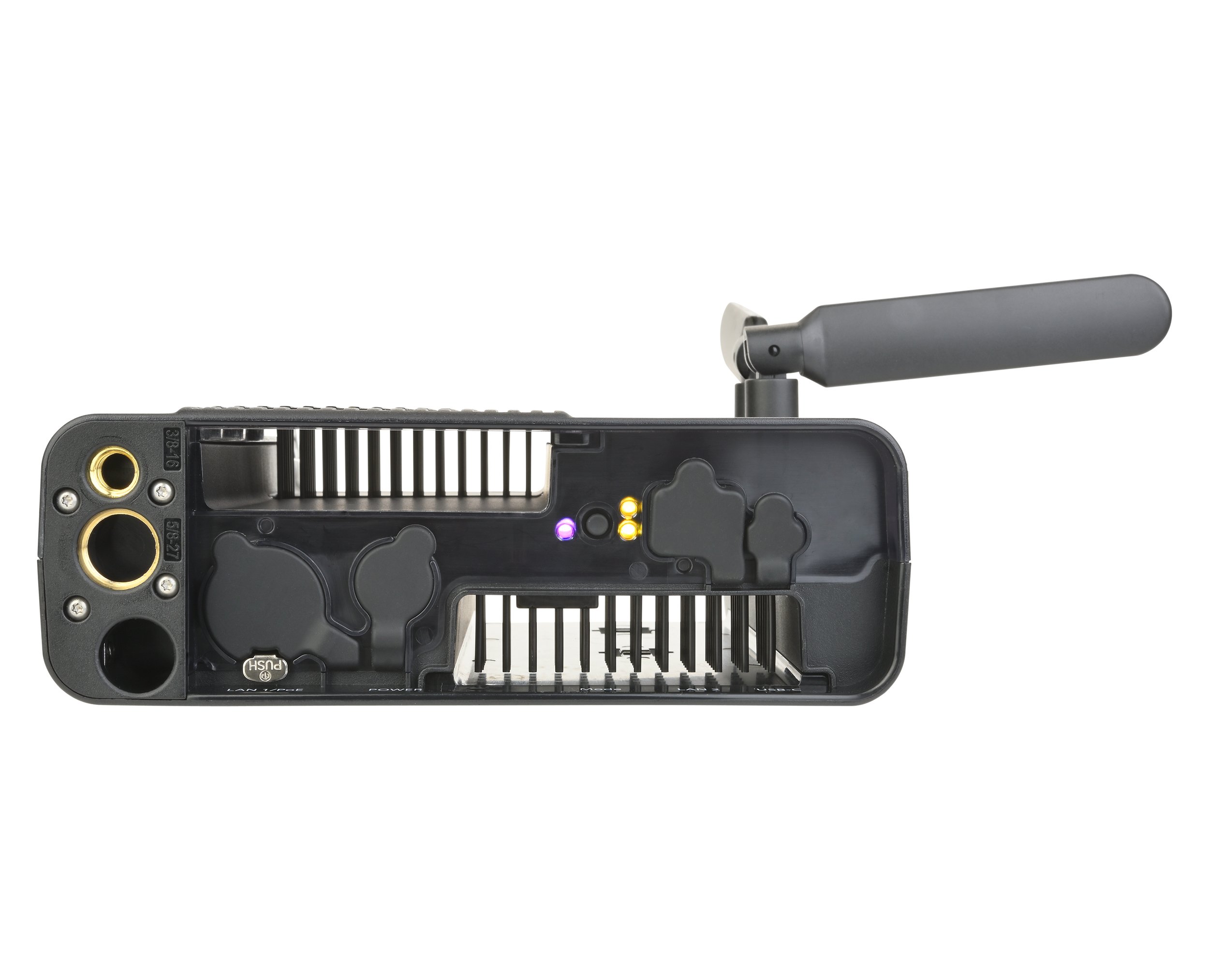

LED status indicators on top and bottom of transceiver
External omnidirectional antennas for the transceiver
Dual redundant radios per beltpack and transceiver
Separate radios for RF and radar scanning
Wall-mount plate
Microphone stand mounts (metric and imperial threads)
Tripod spigot mount
Mechanical
IP53 rating for wet and dusty conditions
FreeSpeak Edge Transceiver Data Sheet
FreeSpeak Edge Transceiver Quick Start Guide
TECHNICAL SPECIFICATIONS
Dimensions
With Transceiver Mount Bracket:
7.60 x 8.25 x 4.12in (WxHxD)
(193.04 x 209.6 x 104.65mm)
Without Transceiver Mount Bracket:
7.60 x 8.25 x 3.37in (WxHxD)
(193.04 x 209.6 x 85.6mm)
Transceiver Mount Bracket:
4.26 x 4.51 x 0.75in (WxHxD)
(108.27 x 114.62 x 19.05mm)
Distance Between Vertical Screw Holes: 3.5in (88.9mm)
Distance Between Horizontal Screw Holes: 3in (76.2mm)
Weight
With Transceiver Mount Bracket: 2.527lbs (1.15kg)
Without Transceiver Mount Bracket: 2.252lbs (1.02kg)
Frequency Spectrum: 5170 -5875MHz (20MHz channels set by country)
Output Power: Adjustable from 1 – 24dBm (Maximum output power is determined by selected channel and country)
Modulation: OFDM
Antennas: 3dB Omni
Antenna Connector: RP-TNC
Power Supply
Input Voltage: 100 to 240V AC (50 - 60Hz)
Output Voltage: 12V @ 5A (60W)
MTBF (min.): 300,000 Hours (Calculated Hours at 25ºC by Telcordia SR-332)
Environmental
IP53 water and dust resistance
Operating: 32° to 113°F (0° to 45°C)
Storage: 86° to 158°F (30° to 70°C)
Humidity: 20-90% Non-Condensing
