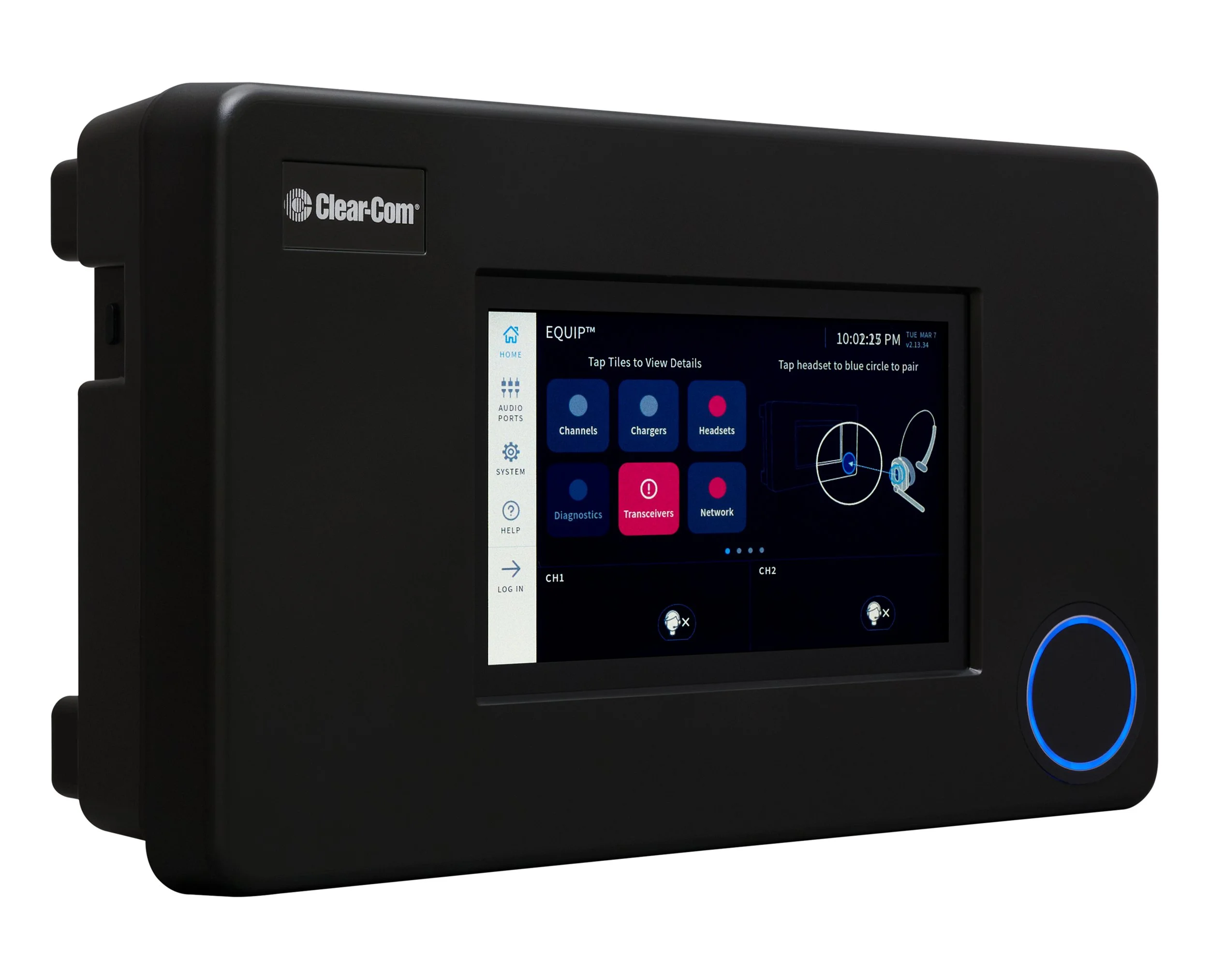

Clear-Com EQUIP EQP Base Station
Clear-Com EQUIP EQP Base Station
EQP-BASE-US — EQUIP Base Station: 2Ch, US with Power Supply
Wall mountable base station.
DETAILS
Touchscreen menu for monitoring and system set-up
Easy pairing with the headsets using NFC
Wall mounted for eye level operation
Supports 4 remote transceivers
Seamless roaming between transceivers
Supports 40 Wireless Headsets
System supports 10 simultaneous talkers
Ethernet connection for browser based administration and remote configuration support
Digital audio connection to Clear-Com LQ provides intercom connections and access to virtual clients
TECHNICAL
SPECIFICATIONS
Environmental
Operating: 32º-125ºF (0º-50ºC)
Storage: 32º-150ºF (0º-70ºC)
Humidity: Between 20% and 90%, Non-Condensing
Dimensions
Tapered design at largest points
7.62 x 12.58 x 3.7 in (HxWxD)
(193.6 x 319.5 x 93.2mm)
Weight
3.5lbs (1.59 kg)
Audio and Display
LAN: Gbit Ethernet, RJ45
Audio Bandwidth: 100 Hz to 7 kHz
Front Panel: LCD type: 800x480 TFT w/ capacitive touch
Internal Connections: 5 RJ45, USB A, PCBA mounted power supply
Side Panel: USB C
Power Supply
Input Voltage: 100 - 240V AC
Output Voltage: 48V DC
Current: 1.88A
Power: 90W
