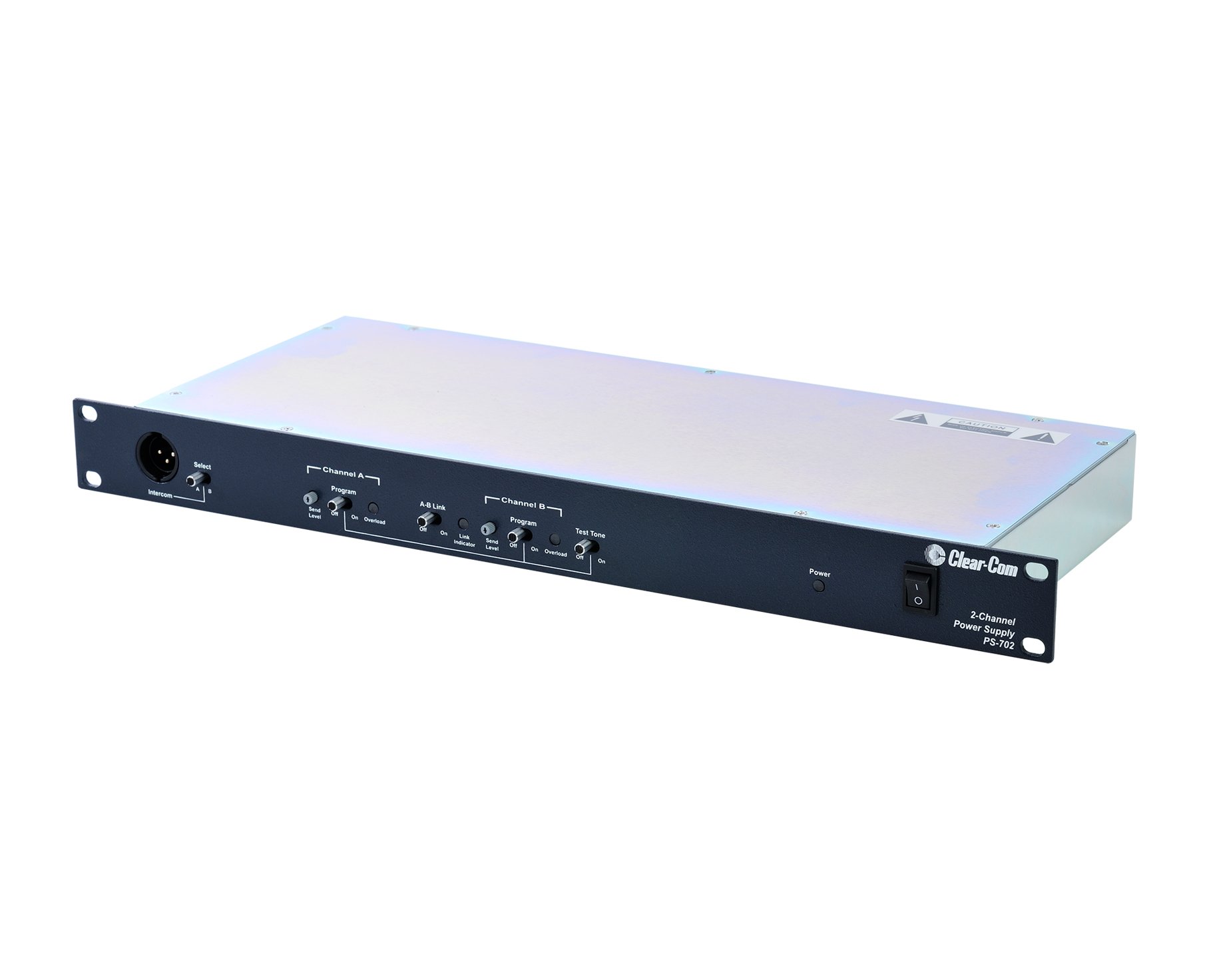

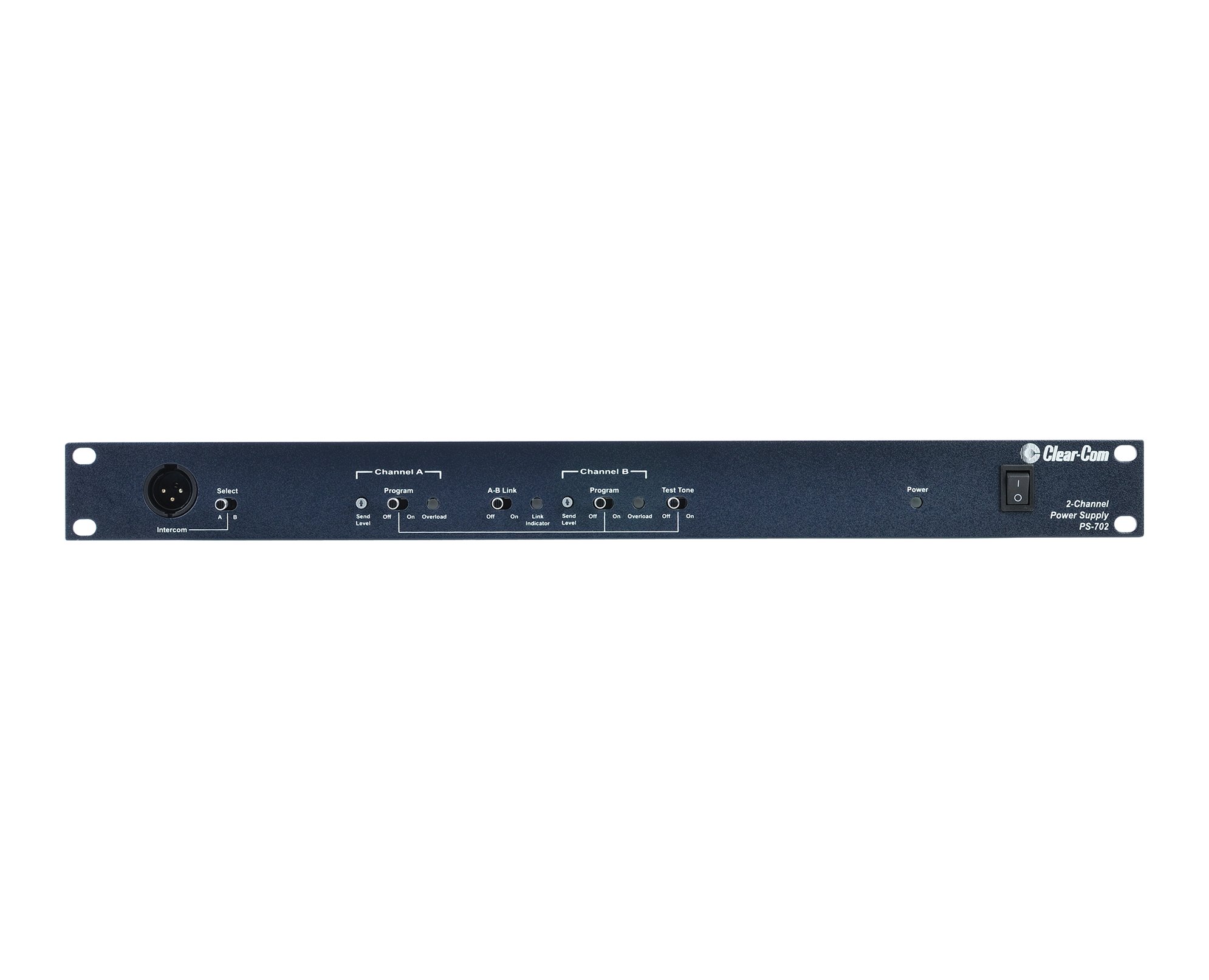

PS-702 — Encore Power Supply: 2Ch, 1.2 Amp, 1RU with Program Audio
The PS-702 can supply up to 2 amps at 30 volts DC to two channels in a 1RU. This is sufficient to power up to 40 beltpacks,10 speaker stations, or 12 headset stations even under the most demanding conditions. Either channel is capable of supplying up to 1.2 amps. The full current capacity may be divided between the two channels.
Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.
DETAILS
Provides up to 2 amps at 30 Volts
Supports up to 40 beltpacks, 10 speaker stations, or 12 headset stations
Full current capacity can be divided between the two channels
Exclusive Intelligent Fault/Overload Sensing (IFOS) for system reset
A+B Link switch for single-channel operation
Built-in test tone generator for set up and diagnostics
UL listed and CE certified
Line and load regulated
Short-circuit protected
TECHNICAL SPECIFICATIONS
Mains Power
Input Voltage Range: 100 - 240V AC
Input Frequency Range: 50 - 60Hz
Input Power: <= 60V AC
Output Voltage: 30V DC ± 0.5V
Output Current per Channel (Continuous): 1.2A
Output Current per Channel (Peak): 2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
Short Circuit Recovery Time (1st short):<= 0.5 sec
Short Circuit Recovery Time: >= 20 shorts in 20sec) <= 20 sec
Environmental
32° - 122°F (0° - 50°C)
Dimensions
1.75 x 19 x 7.5in (HxWxD)
(44 x 483 x 190mm)
Weight
6.16lbs (2.80kg)
Program Line Input
Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5K
Frequency Response
Program Input - Partyline: 200 - 20kHz ± 3dB
Max Distortion
Program Input - Partyline: <= 0.2%
Noise
Program Mic Input - Partyline: < -70dBu
Max Gain
Program Input - Partyline: >= -16dB
Min Gain
Program Input - Partyline: <= -20dB
