Clear-Com Encore MS-702 Main Station
Clear-Com Encore MS-702 Main Station

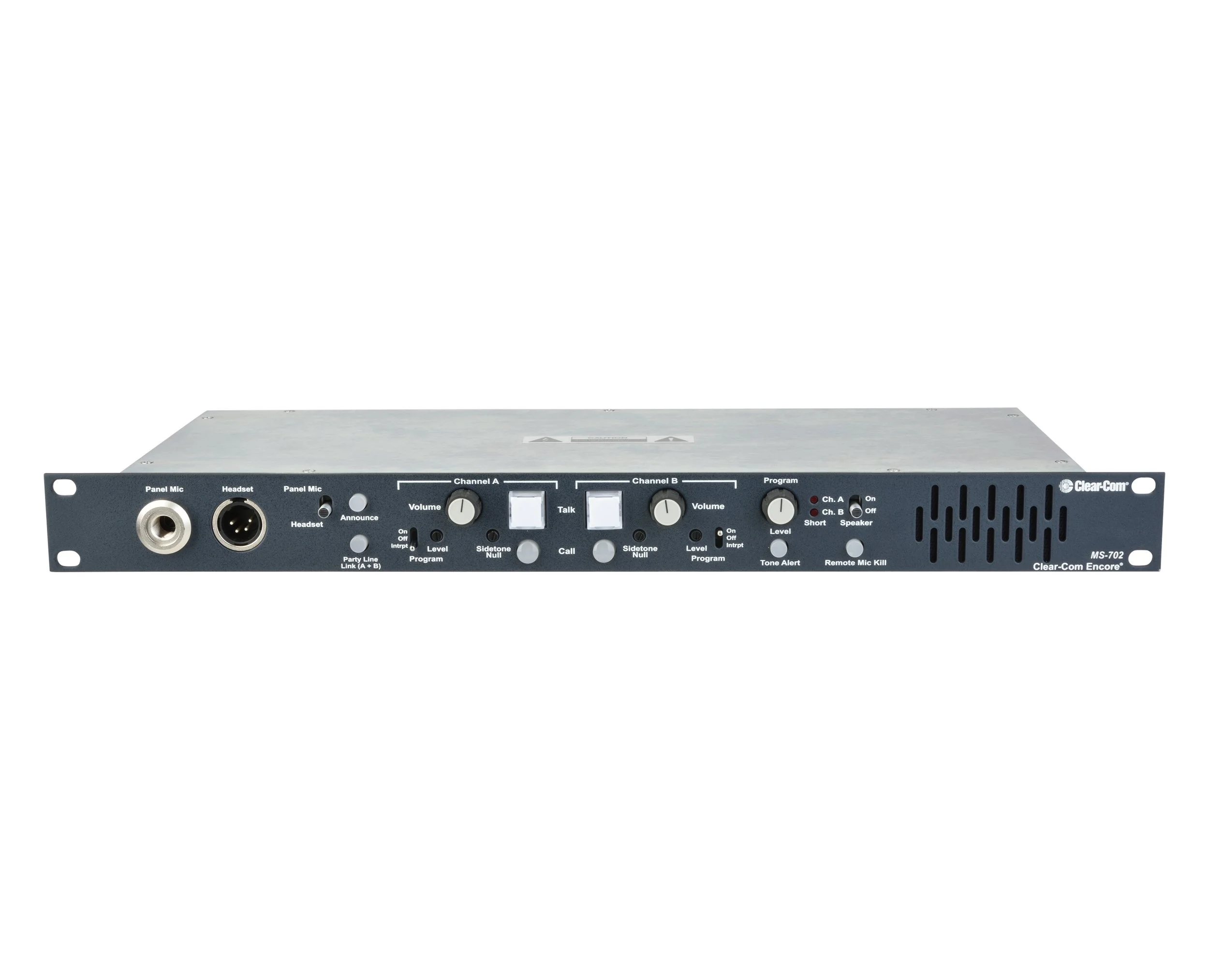

MS-702 — Encore Main Station: 2Ch, Power supply 1.2 Amp, 1RU with Stage Announce, Program Audio, Hot-Mic
The MS-702 is a 1RU two-channel main station with programmable front panel buttons, individual channel short-circuit protection, individual channel volume control, and a regulated fail-safe power supply.
Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.
DETAILS
Supports up to 55 beltpacks or 10 speaker stations on 2 channels
Automatic short-circuit protection and reset with LED indicators
Visual and audible call signaling
Individual volume controls for each channel
Program feed to both channels with selectable Program Interrupt
Remote Mic Kill
Stage Announce with relay
Channel A & B Link switch
Built-in speaker
Universal voltage power supply
TECHNICAL SPECIFICATIONS
Max Distortion
Panel Mic - Partyline: <= 0.5%
Headset Mic - Partyline: <= 0.5%
Headset Mic - Line Out: <= 0.5%
Program Input - Partyline: <= 0.2%
Program Input - Headset Out: <= 0.2%
Program Input - Speaker Out: <= 0.5%
Partyline - Headset Out: <= 0.2%
Partyline - Speaker Out: <= 0.5%
Noise
Panel Mic - Partyline: < -65dBu
Headset Mic - Partyline: < -70dBu
Headset Mic - Line Out: < -55dBu
Program Input - Partyline: < -85dBu
Program Input - Headset Out: < -60dBu
Program Input - Speaker Out: < -60dBu
Partyline - Headset Out: < -50dBu
Partyline - Speaker Out: < -50dBu
Max Gain
Panel Mic - Partyline: >= 37dB
Headset Mic - Partyline: 41dB ± 2dB
Headset Mic - Hot Mic Out: 55dB ± 3dB
Headset Mic - Announce Out: 55dB ± 3dB
Program Input - Partyline: >= -16dB
Program Input - Headset Out: >= 18dB
Program Input - Speaker Out: >= 24dB
Partyline - Headset Out: >= 34dB
Partyline - Speaker Out: >= 40dB
Min Gain
Panel Mic - Partyline: <= 25dB
Mains Power
Input Voltage Range: 100 - 240V AC
Input Frequency Range: 50 - 60Hz
Input Power: <= 60V AC
Output Voltage: 30V DC ± 0.5V
Output Current per Channel (Continuous): 1.2A
Output Current per Channel (Peak): 2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
Short Circuit Recovery Time (1st short):<= 0.5 sec
Short Circuit Recovery Time >= 20 shorts in 20sec: <= 20 sec
Environmental
32 - 122°F (0 - 50°C)
Dimensions
1.75 x 19 x 6.5in (HxWxD)
(44 x 483 x 165mm)
Weight
6.1lbs (2.8kg)
Panel Microphone Input
Input Type: Electret
Input Impedance: >=2K
Mic Limiter Threshold: 0dBu ± 3dB
Mic Limiter Range: >= 20dB
Headset Microphone Input
Input Type: Dynamic
Input Impedance: >= 1K
Mic Limiter Threshold: 0dBu ± 3dB
Mic Limiter Range: >= 15dB
Program Line Input
Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5K
Headset Output
Load Impedance: >= 8
Output Impedance: <= 25
Output Limiter Threshold: +5dBu ± 3dB
Maximum Output Level before Distortion: >= 17dBu
Speaker Output
Load Impedance: >= 4
Max Output Level before 1% Distortion: 20dBu ± 2dBu
Partyline Output
O Noise: < -74dBu
Output Impedance: >10K
Partyline Input
Crosstalk: < -60dB
Max level before Clipping: >= 12dBu
Sidetone Null Capability: > 25dB
Stage Announce/Balanced Line Out
Type: Balanced
Output Impedance: >= 200
Load Impedance: >= 600
IFB/Hot Mic
Type: Unbalanced
Output Impedance: 180
Load Impedance: >= 600
Frequency Response
Panel Mic - Partyline: 600 - 10KHz ± 3dB
Headset Mic - Partyline: 200 - 12kHz ± 3dB
Headset Mic - Line Out: 200 - 12kHz ± 3dB
Program Input - Partyline: 100 17kHz ± 3dB
Program Input - Headset Out: 200 - 10kHz ± 3dB
Program Input - Speaker Out: 300 - 10kHz ± 3dB
Partyline - Headset Out: 200 - 10kHz ± 3dB
Partyline - Speaker Out: 300 - 10kHz ± 3dB
