Clear-Com DX410 WH410 Wireless Headset
Clear-Com DX410 WH410 Wireless Headset
CZ-WH410 — DX410 System - WH410 All-In-One Headset: 2Ch, 2.4GHz with (2) BAT50 batteries

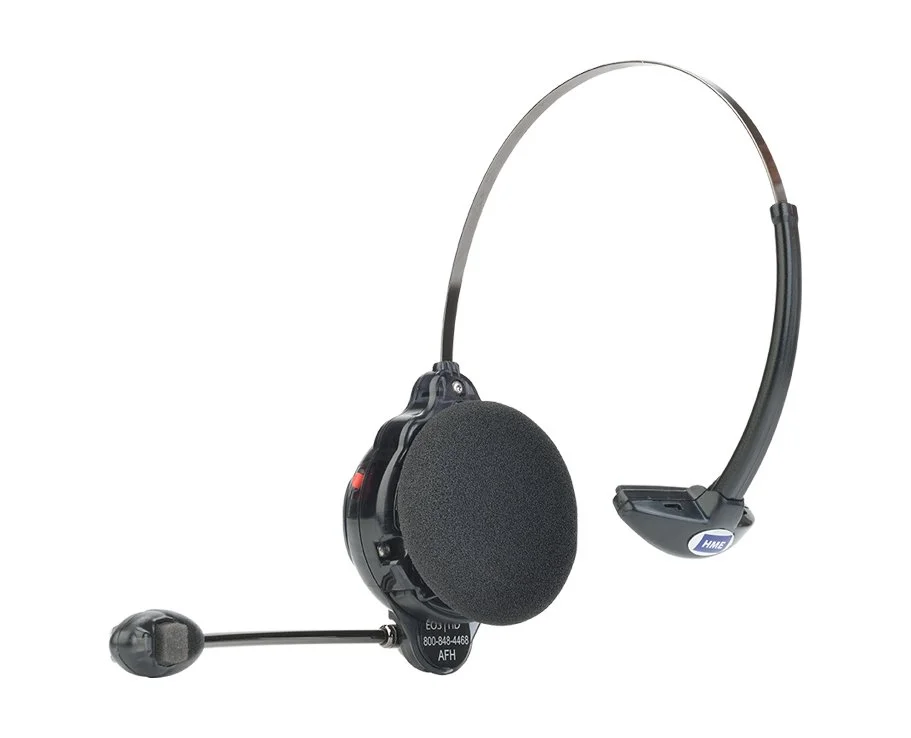

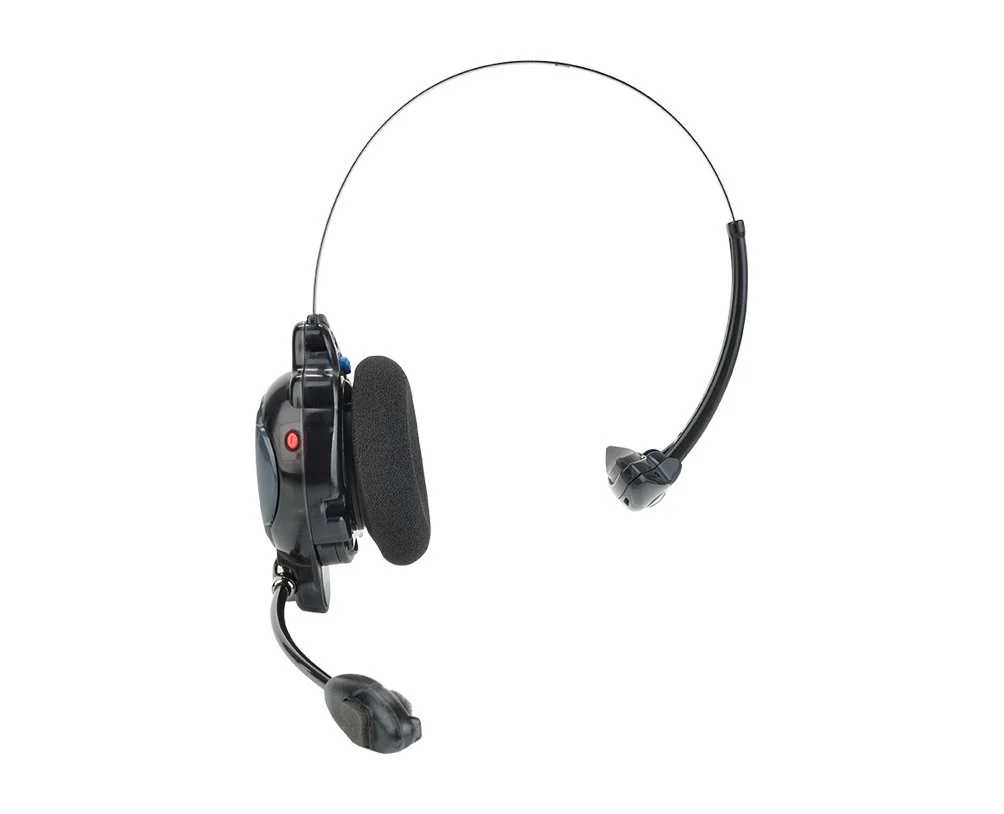

The WH410 is a light-weight, single-ear, all-in-one wireless headset, operates in the license-free 2.4GHz frequency range and are used with the BS410 base station. The WH410 is compatible with the DX410 digital wireless system.
DETAILS
Two-channel operation
2.4GHz frequency range
Hands-free communications
Up to 15 all-in-one headsets on a single system
7 kHz wide band audio
Single-ear, light-weight design
Rugged and reliable
Up to 12 hours of battery life
TECHNICAL
SPECIFICATIONS
Receiver
Type: Frequency Hopping, Spread Spectrum (FHSS)
RF Sensitivity: <-90dBm w 10-3 BER
Frequency Stability: 13 ppm
Distortion: <2%
Environmental
32° to +122°F (0° to +50°C)
Weight
3.5oz (0.10kg) including battery
Audio
Channels: 2 audio channels
Frequency Range: 2400MHz – 2483.5MHz
Frequency Response: 200Hz – 7 kHz
Antenna: Internal, horizontal/vertical diversity
Headset Connector: 4-pin, mini-DIN
Microphone: Electret
Headset Output: 160mW into 32Ω
System Distortion: <2%
Controls: Power, Volume-Up, Volume-Down, A, B, ISO
Indicators: Dual-color LED (red/green)
Battery Requirements: 3.6V lithium-ion
Battery Life: Up to 12 hours
Antenna
Internal
Transmitter
Type: Frequency Hopping, Spread Spectrum (FHSS)
Transmit Power: 100mW burst
Modes: Momentary or Latch
Type: Gaussian filtered FSK, TDMA
Frequency Stability: 13 ppm
Harmonics/Spurious: Exceeds FCC and ETSI specifications
