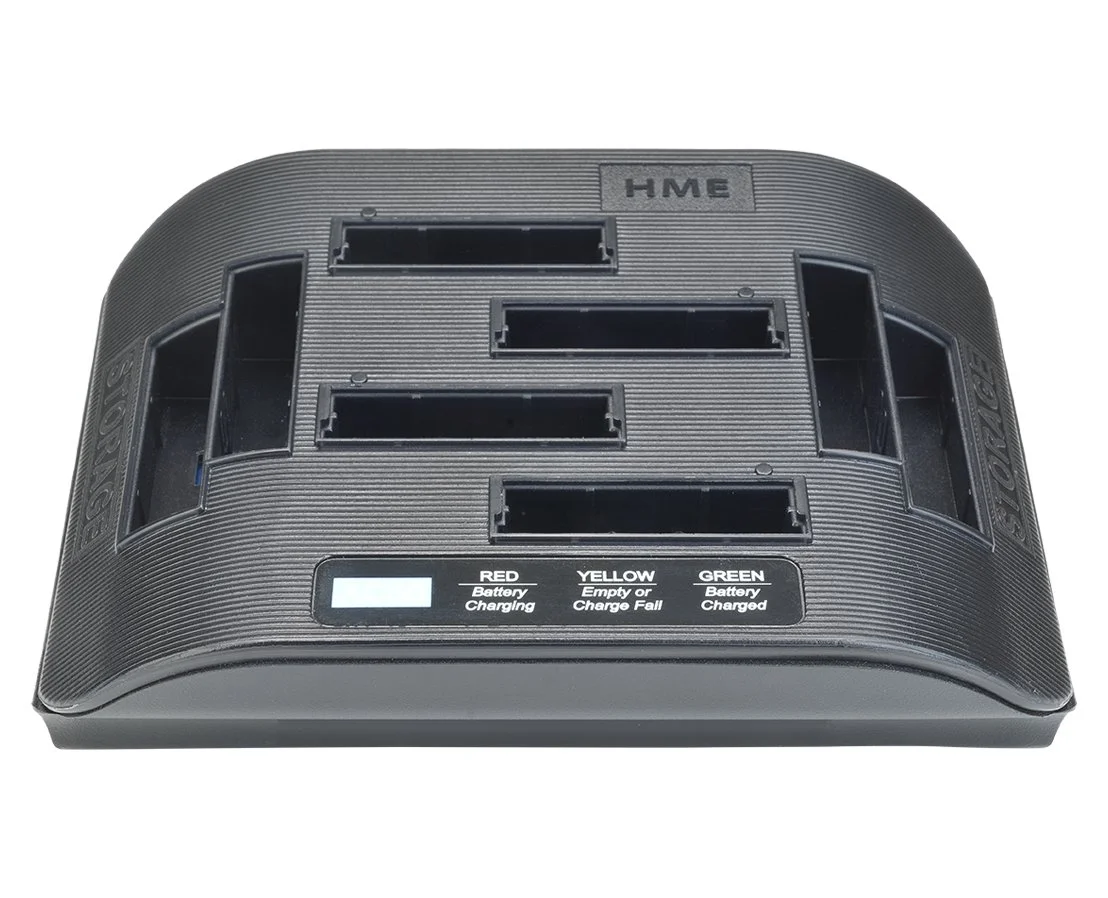

The AC50 is a battery charger for the BAT50 batteries. The AC50 can charge up to four BAT50s simultaneously with additional reserve slots for four extra batteries. Red, Yellow and Green LED lights indicate whether the batteries are charging, the slot is empty or the batteries are fully charged, respectively. Charge time is 2.5 hours.

The AC50 charges BAT50s, which are compatible with the DX100, DX121, DX210, DX340ES and DX410 digital wireless systems. BAT50 batteries can charge the DX410 system (BS410, BP410 and WH410). They can also charge the following wireless headsets: WH340, WH220, and WH301.

DETAILS

• Charges 4 batteries simultaneously

• Includes 4 additional battery storage slots

• LED status indicator lights

• Green LED status indicator light on top and bottom

• Charge time is 2 hours

• Charges AC50 batteries

TECHNICAL
SPECIFICATIONS

Power Supply

Wall plug with switchable adapters

Input Voltage: 85 – 264V AC; 100 – 240V AC; nominal

Output Voltage: 5V; 3A

MTBF (min.): 200,000 hours demonstrated

Temperature

Operating: 32° - +122°F (0° - +50°C)

Storage: -40° - +176°F (-40° - +80°C)

Humidity: 0 – 95%, non-condensing
