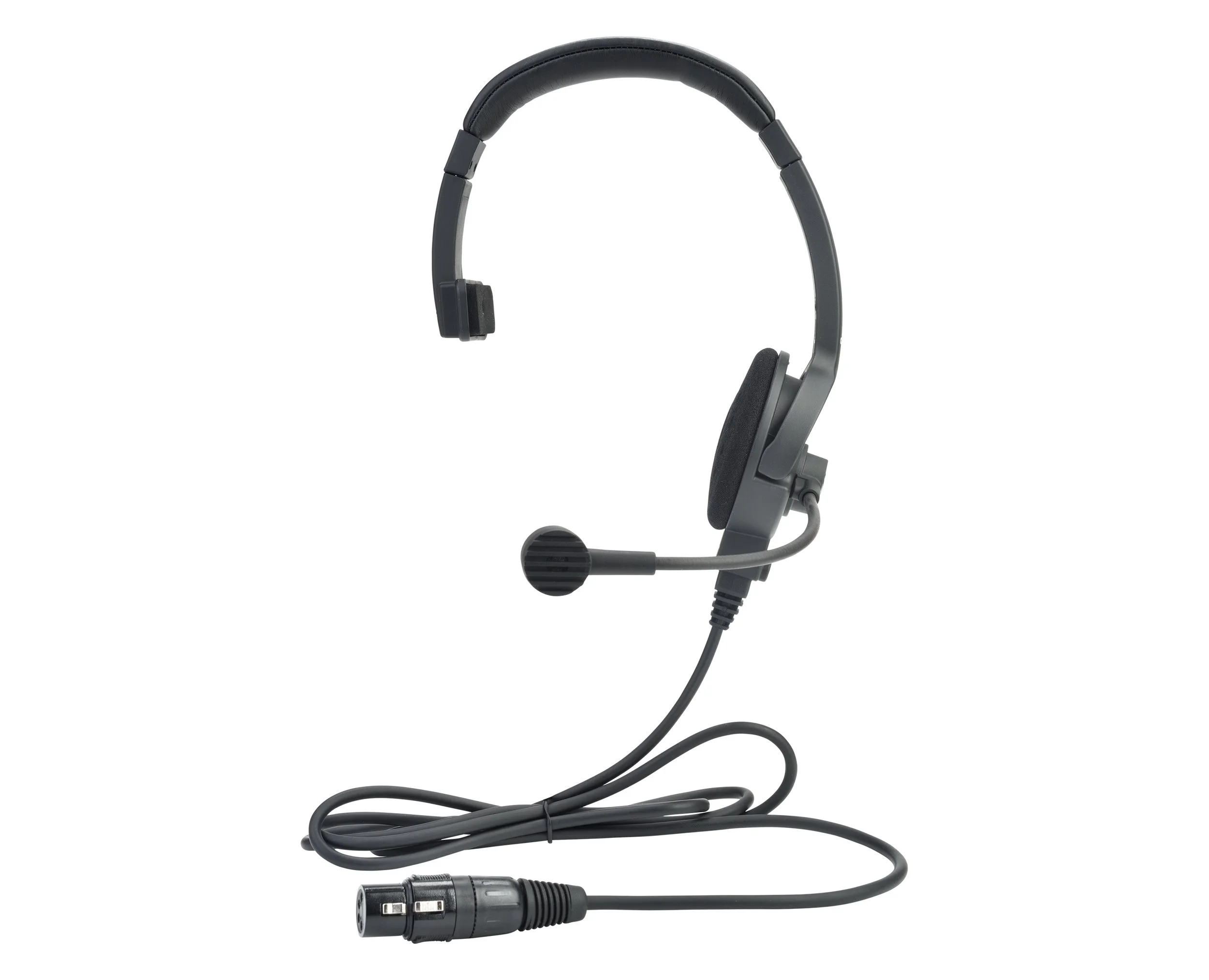

Clear-Com CC-110 Headset
Clear-Com CC-110 Headset
CC-110-X4 —Headset: Single Ear, Light Weight, 4 pin XLR-F with Dynamic Mic, Boom switch. Inc. headset bag
CC-110-X5 — Headset: Single Ear, Light Weight, 5 pin XLR-M with Dynamic Mic, Boom switch. Inc. spare foam ear pads, headset bag
Single-ear premium lightweight headset with cardioid dynamic microphones.
DETAILS
High quality dynamic cardioid microphone
20Hz -20KHz frequency response
Choice of earpads: leatherette or foam
Flexible gooseneck microphone positioning
Boom rotation ON/OFF switch for quick microphone muting
Interchangeable cabling for easy connector change and repair
Fully serviceable headset
Rugged design
TECHNICAL
SPECIFICATIONS
Sensitivity
Microphone Open Circuit Sensitivity: -64dB ±3.5dB; (0dB=1V/1Pa, at 1kHz , typical)
Headphone Sensitivity
CC-110: 99dB ±3dB (SPL) / 1mW, at 1kHz typical
Connector
Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR
Dimensions
Packaging for CC-110: 6.7 x 8 x 3.5in (WxHxD)
(170 x 205 x 90mm)
Weight
CC-110: 5.1oz (145g) without 8-pin cable assembly and M3*18mm SCREW
Headphone
Type: Closed-back
Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
Frequency Response: 20Hz v- 20kHz
Impedance: CC-110: 400Ω ±30%; at 1kHz typical
Microphone
Element: Dynamic
Driver: 15mm, neodymium magnet
Polar Pattern: Cardioid
Frequency Response: 250Hz - 20kHz
Impedance: CC-110: 200Ω ±30%; at 1kHz typical
Power
Maximum: 500mW
